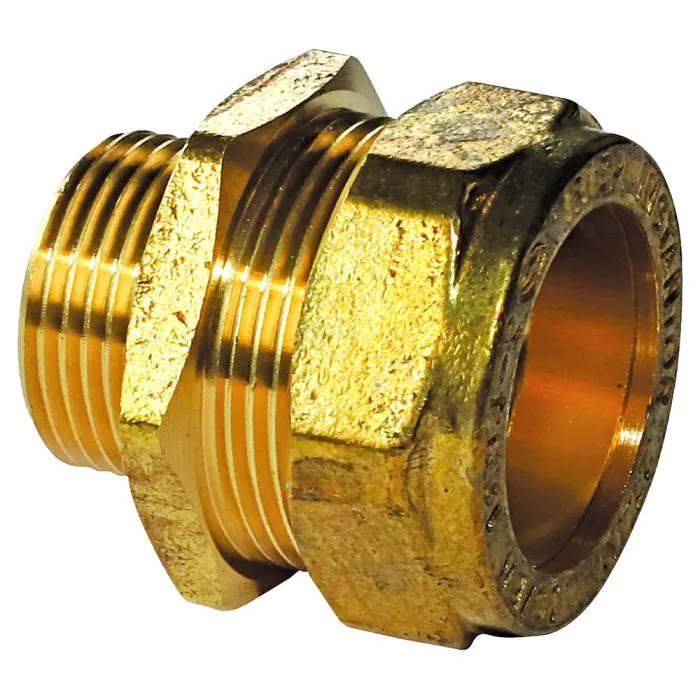

Instantor C x MI Straight Male Compression Coupler - 18 mm
€15.46
€12.57
Sold by Each
Delivery
Delivery from 3 working days
Delivery available
Click & Collect
40
Stock Available
Irish and metric size Instantor brass compression fittings.
Material: Copper Alloy (Brass EN12165 CW617N)
Finish: Brass
Length: 31 mm
Width: 18 mm
Height: 18 mm
Weight: 0.04 kg
Maximum Operating Pressure: 16 bar @ 30°C, 10 bar @ 80°C, 6 bar @ 110°C
Minimum Operating Pressure: 0 bar
Maximum Operating Temperature: 110°C
Minimum Operating Temperature: -20°C (Flowing Fluid)
Approvals: WRAS: #1601302 (Imperial) #1205368 (Metric), Kiwa: #1602707 (Imperial) #1205709 (Metric), NSAI: ISEN1254-2:1998. – License No. 1.8.1
More Information
Height
18mm
Length
31mm
Width
18mm
Weight
0.04kg
Colour
Brass
